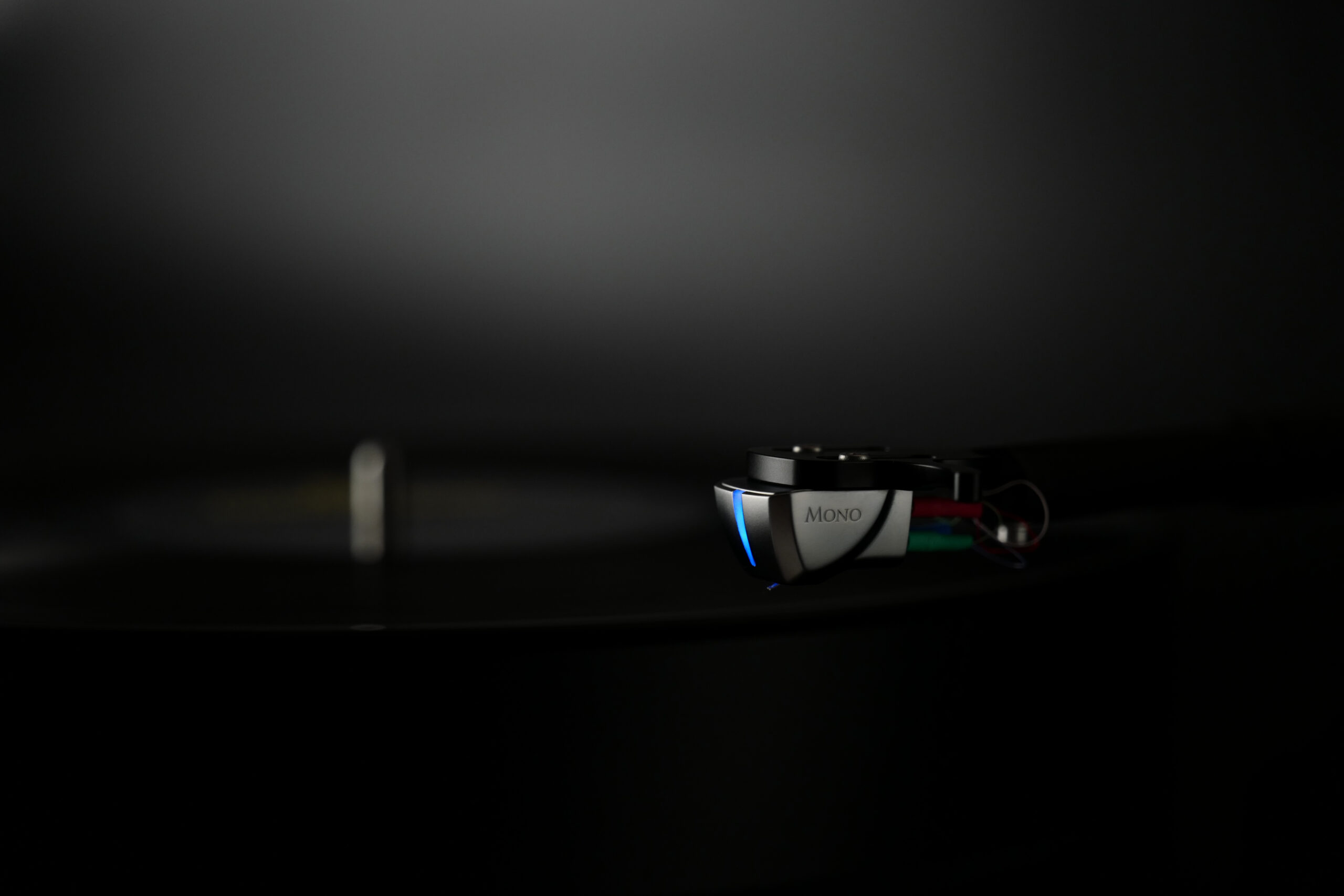

Mono cartridge series
Crafted where tradition meets light

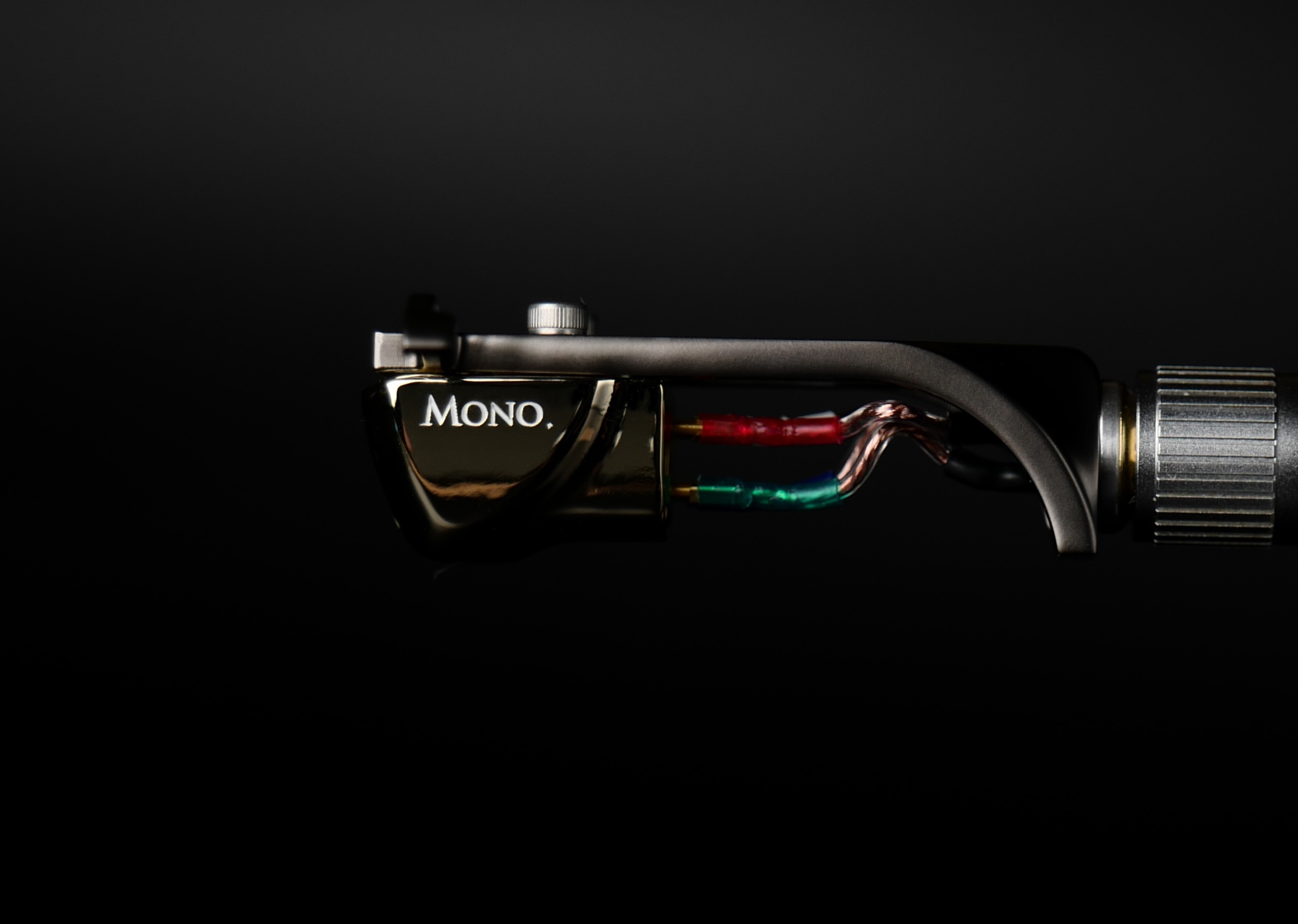

Mono cartridge series

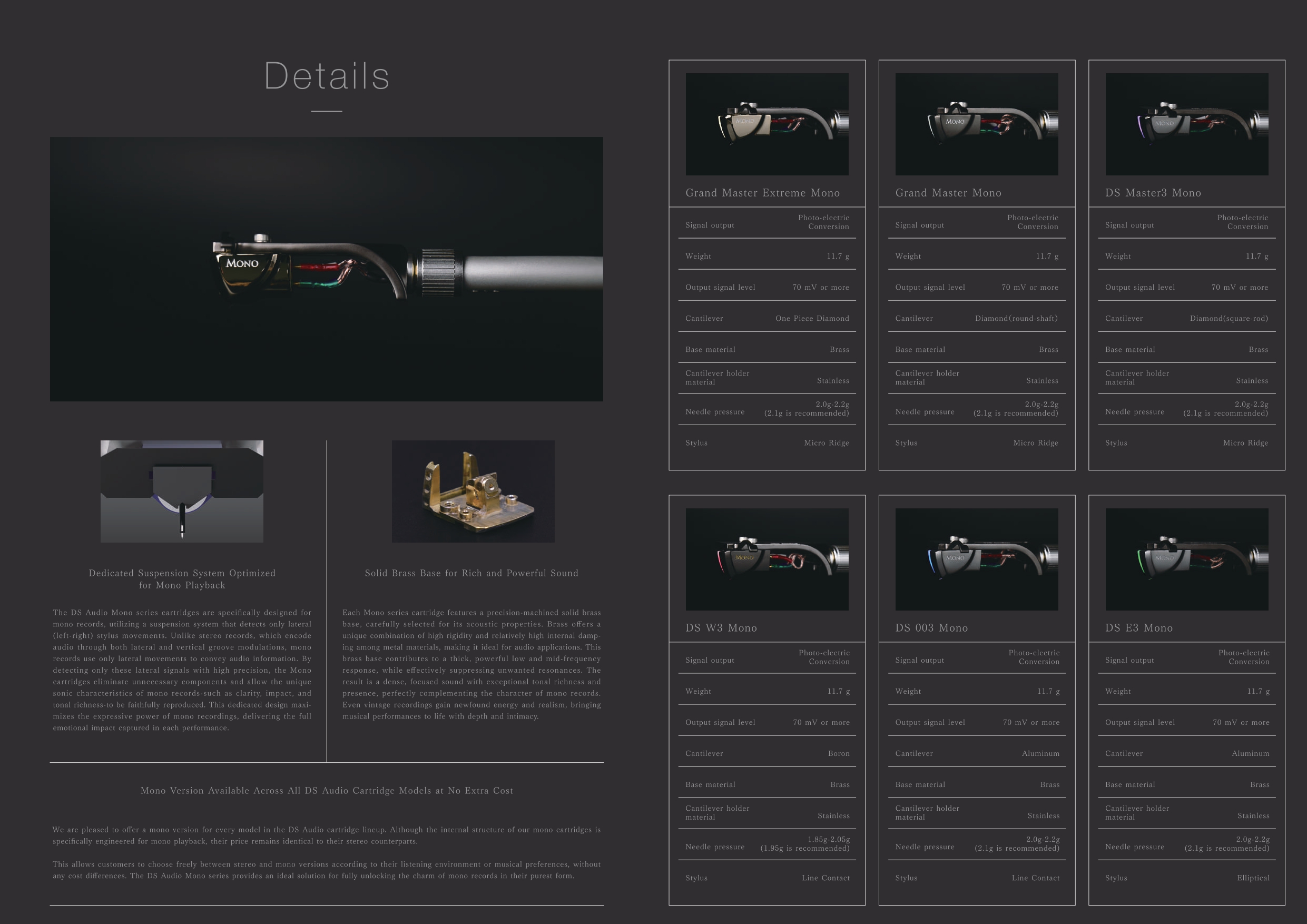

Details

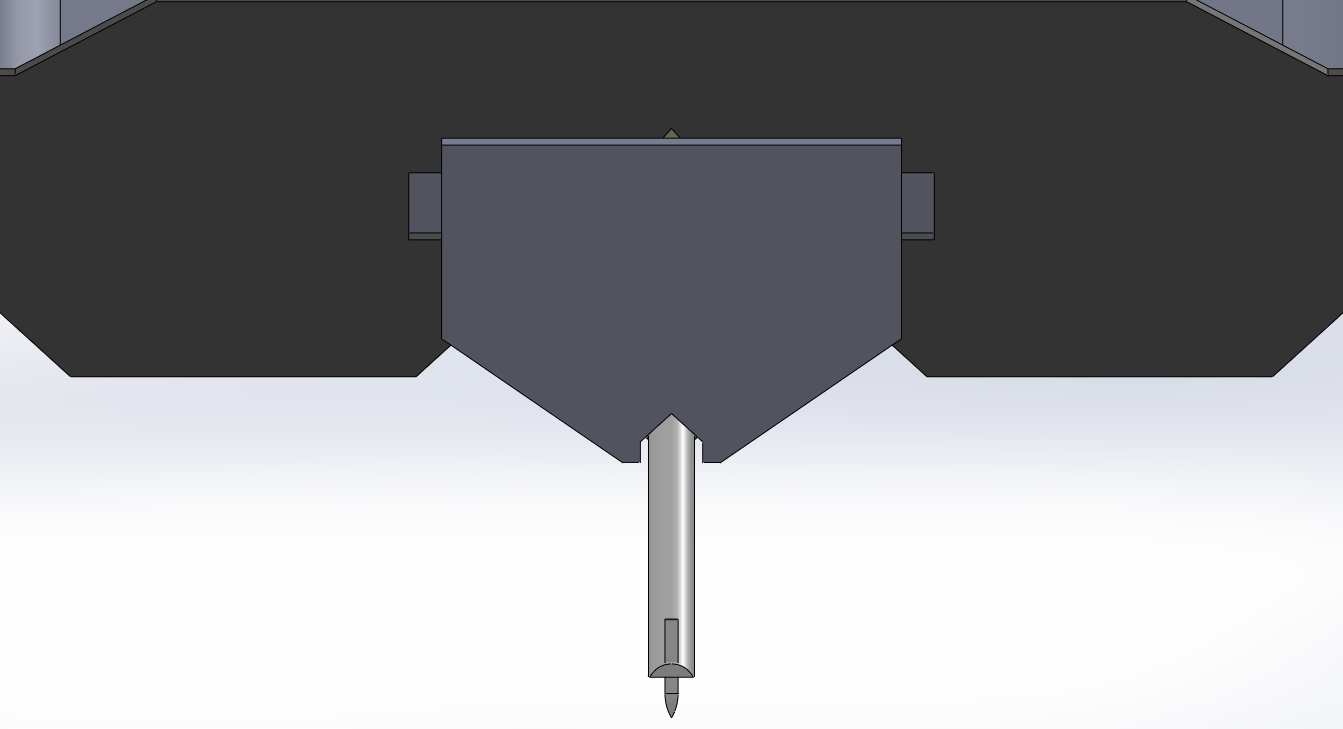

Dedicated Suspension System Optimized for Mono Playback
The DS Audio Mono series cartridges are specifically designed for mono records, utilizing a suspension system that detects only lateral (left-right) stylus movements.
Unlike stereo records, which encode audio through both lateral and vertical groove modulations, mono records use only lateral movements to convey audio information.
By detecting only these lateral signals with high precision, the Mono cartridges eliminate unnecessary components and allow the unique sonic characteristics of mono records—such as clarity, impact, and tonal richness—to be faithfully reproduced.
This dedicated design maximizes the expressive power of mono recordings, delivering the full emotional impact captured in each performance

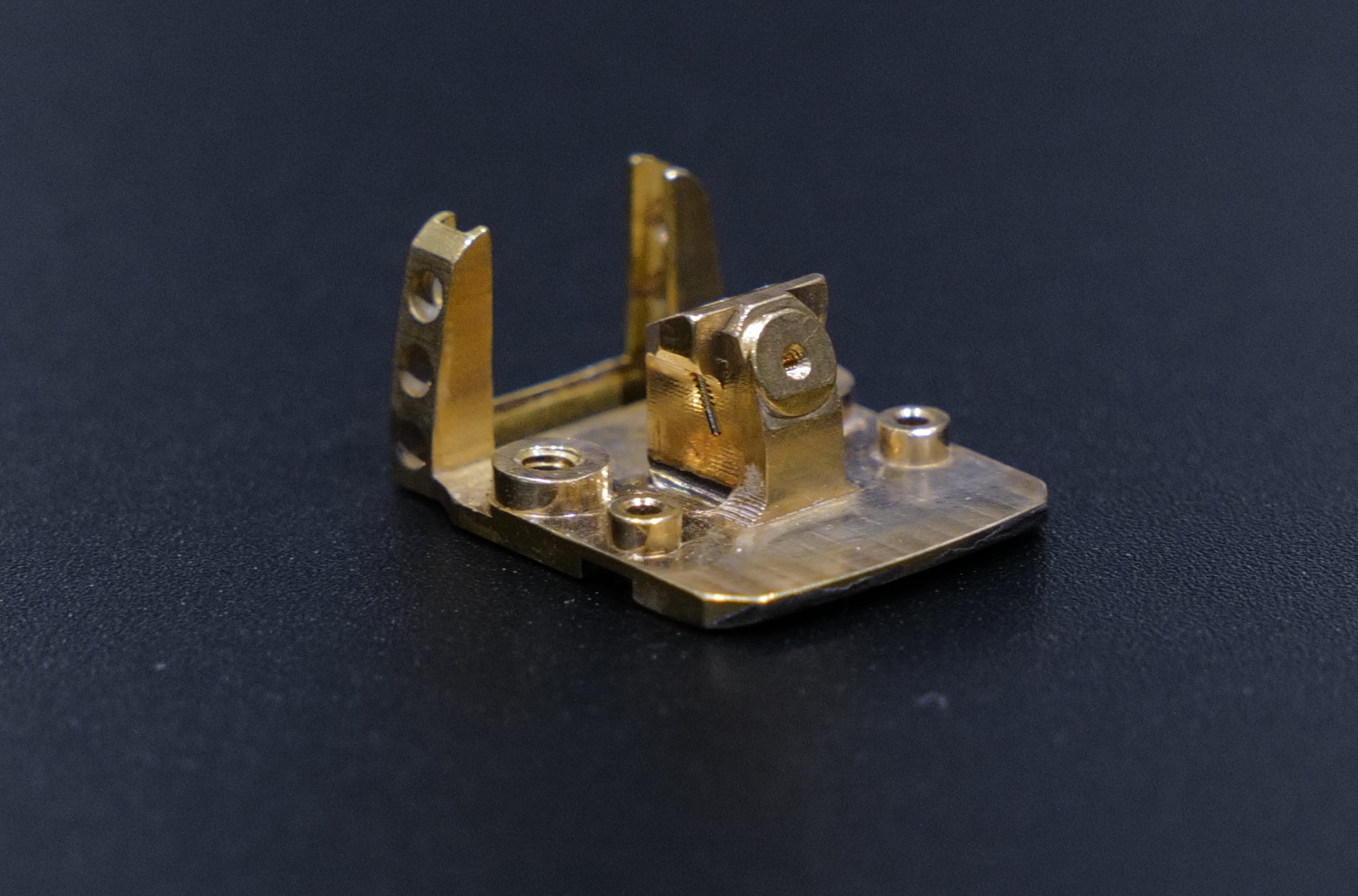

Solid Brass Base for Rich and Powerful Sound
Each Mono series cartridge features a precision-machined solid brass base, carefully selected for its acoustic properties.
Brass offers a unique combination of high rigidity and relatively high internal damping among metal materials, making it ideal for audio applications.
This brass base contributes to a thick, powerful low and mid-frequency response, while effectively suppressing unwanted resonances.
The result is a dense, focused sound with exceptional tonal richness and presence, perfectly complementing the character of mono records.
Even vintage recordings gain newfound energy and realism, bringing musical performances to life with depth and intimacy.
Mono Version Available Across All DS Audio Cartridge Models at No Extra Cost
We are pleased to offer a mono version for every model in the DS Audio cartridge lineup.
Although the internal structure of our mono cartridges is specifically engineered for mono playback, their price remains identical to their stereo counterparts.
This allows customers to choose freely between stereo and mono versions according to their listening environment or musical preferences, without any cost differences.
The DS Audio Mono series provides an ideal solution for fully unlocking the charm of mono records in their purest form.
- Grand Master Extreme Mono
- Signal output
- Photo-electric Conversion
- Weight
- 11.7 g
- Output signal level
- 70 mV or more
- Cantilever
- One Piece Diamond
- Base material
- Brass
- Cantilever holder material
- Stainless
- Needle pressure
- 2.0g-2.2g (2.1g is recommended)
- Stylus
- Micro Ridge
- Grand Master Mono
- Signal output
- Photo-electric Conversion
- Weight
- 11.7 g
- Output signal level
- 70 mV or more
- Cantilever
- Diamond（round-shaft）
- Base material
- Brass
- Cantilever holder material
- Stainless
- Needle pressure
- 2.0g-2.2g (2.1g is recommended)
- Stylus
- Micro Ridge
- DS Master3 Mono
- Signal output
- Photo-electric Conversion
- Weight
- 11.7 g
- Output signal level
- 70 mV or more
- Cantilever
- Diamond(square-rod)
- Base material
- Brass
- Cantilever holder material
- Stainless
- Needle pressure
- 2.0g-2.2g (2.1g is recommended)
- Stylus
- Micro Ridge
- DS-W3 Mono
- Signal output
- Photo-electric Conversion
- Weight
- 11.7 g
- Output signal level
- 70 mV or more
- Cantilever
- Boron
- Base material
- Brass
- Cantilever holder material
- Stainless
- Needle pressure
- 1.85g-2.05g (1.95g is recommended)
- Stylus
- Line Contact
- DS 003 Mono
- Signal output
- Photo-electric Conversion
- Weight
- 11.7 g
- Output signal level
- 70 mV or more
- Cantilever
- Aluminum
- Base material
- Brass
- Cantilever holder material
- Stainless
- Needle pressure
- 2.0g-2.2g (2.1 g is recommended)
- Stylus
- Line Contact
- DS E3 Mono
- Signal output
- Photo-electric Conversion
- Weight
- 11.7 g
- Output signal level
- 70 mV or more
- Cantilever
- Aluminum
- Base material
- Brass
- Cantilever holder material
- Stainless
- Needle pressure
- 2.0g-2.2g (2.1g is recommended)
- Stylus
- Elliptical
Review

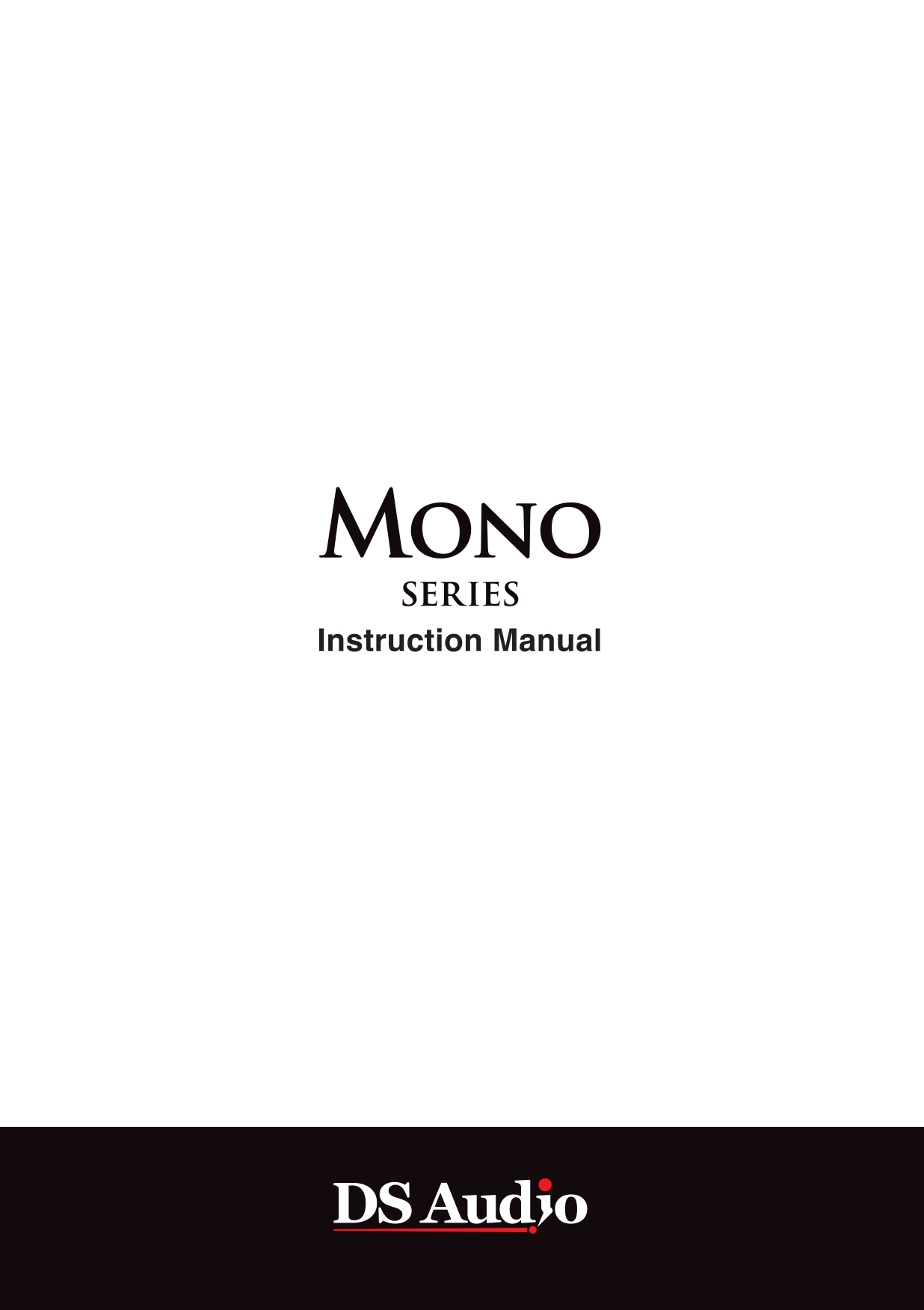

Download
